Executive Summary

Industrial organisations are increasingly deploying vibration monitoring systems to enable predictive maintenance and asset reliability strategies. A critical architectural decision is how data is transmitted from operational environments to analytical platforms.

This paper demonstrates that 4G/LTE-based connectivity provides a more secure and lower-risk architecture than integrating such systems into internal enterprise networks. By leveraging network isolation, outbound-only communication, and carrier-grade controls, organisations can significantly reduce their attack surface and simplify security governance.

Background and Context

Condition monitoring systems operate at the intersection of IT and OT environments. Historically, these systems have relied on internal networks for data transmission, introducing complexity in segmentation, firewalling, and access control.

At the same time, threat actors increasingly target lateral movement pathways between IT and OT domains. As a result, architectural decisions around connectivity are now a primary security concern.

4G connectivity introduces an alternative model: decoupling monitoring infrastructure from internal networks entirely.

Architectural Comparison

Traditional Internal Network Architecture

In a conventional deployment, vibration monitoring devices connect into the customer’s internal network, often within an OT or mixed IT/OT environment.

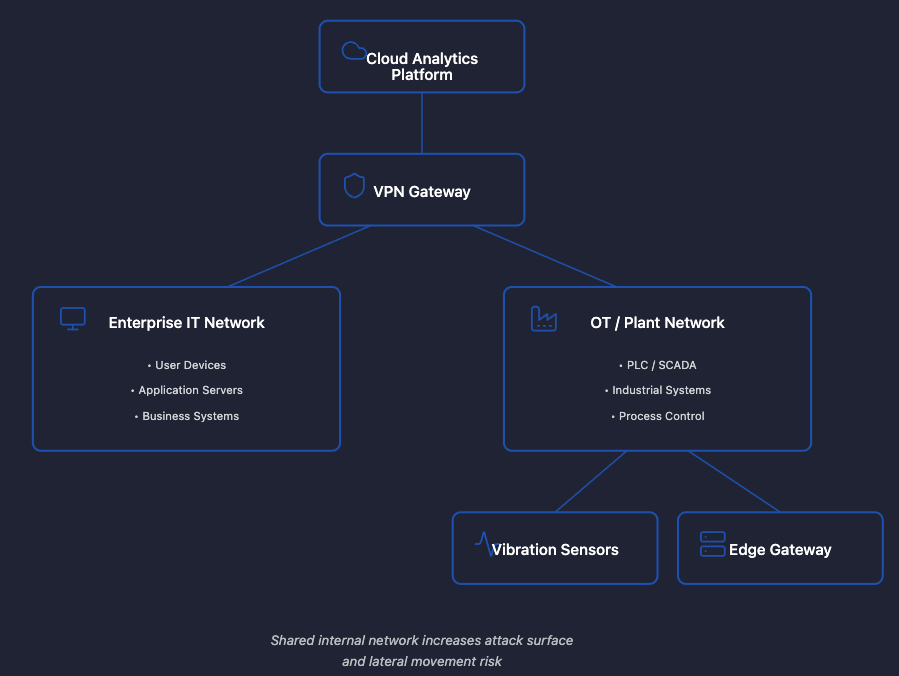

Diagram 1: Internal Network Architecture

Key characteristics:

• devices are routable within internal networks

• reliance on VLANs and firewall segmentation

• VPN required for external data transfer

• shared infrastructure between IT and OT domains

4G-Based Architecture

In a 4G architecture, the vibration monitoring device communicates directly with external systems via the cellular network.

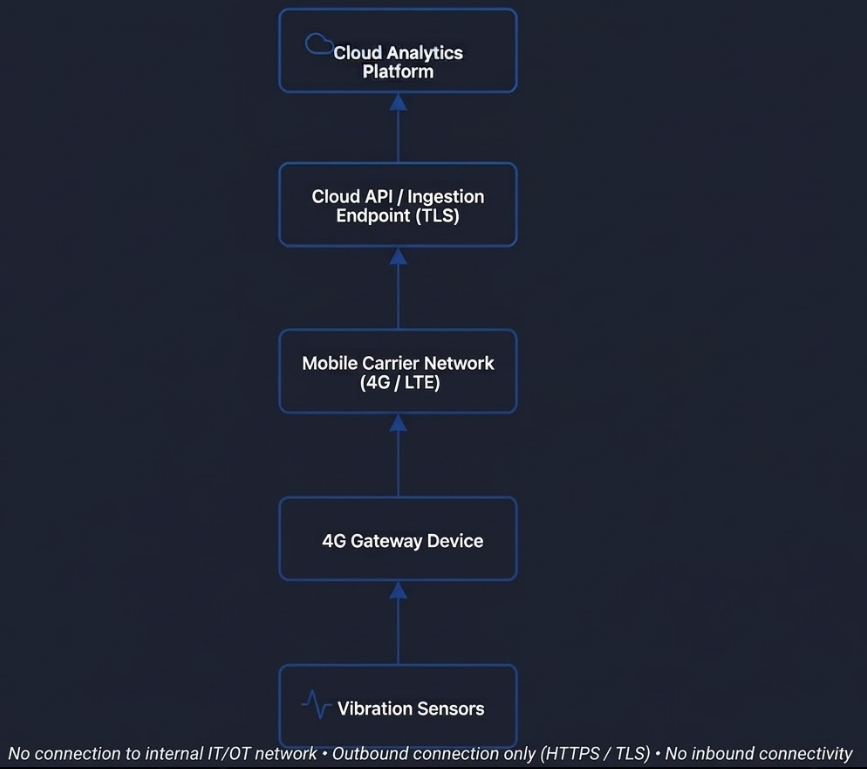

Diagram 2: 4G Isolated Architecture

No connection exists to the enterprise IT or OT network.

Security Analysis

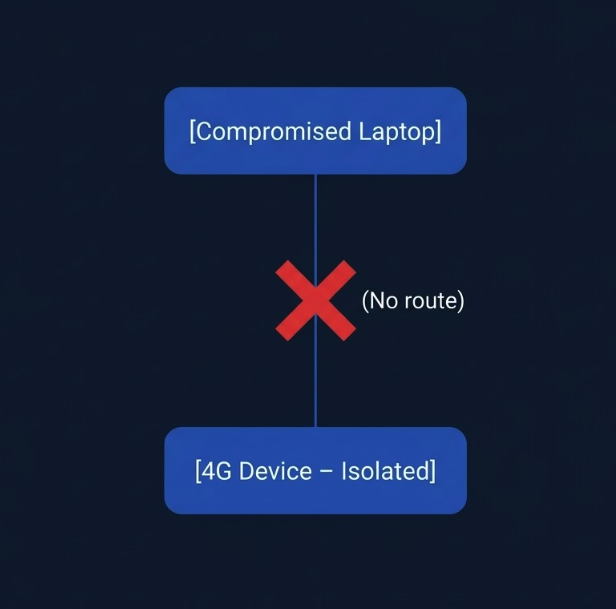

Network Isolation

Internal Network Model

Devices are part of the enterprise network fabric and may be reachable via routing, even when segmented.

4G Model

Devices are isolated by design. There is no route from internal systems to the device.

Security impact:

Eliminates lateral movement from compromised IT assets into monitoring infrastructure.

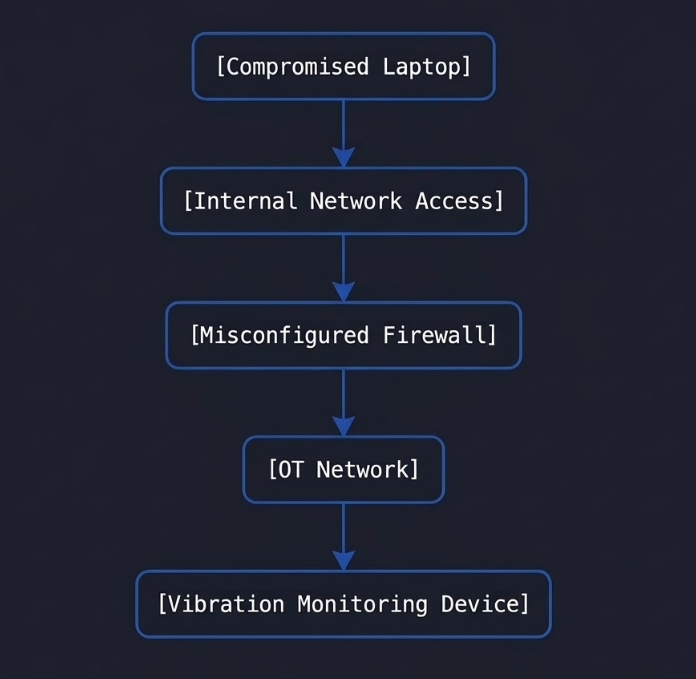

Lateral Movement Risk

Internal Network

4G Model

Security impact:

4G architecture breaks common attack paths used in ransomware and targeted OT attacks.

Attack Surface Reduction

Internal Network

Every connected device introduces:

• an IP address
• open or misconfigured ports
• potential vulnerabilities

4G Model

• no exposure to internal scanning
• no inbound connectivity
• single outbound communication path

Security impact: Significant reduction in reachable assets.

Inbound vs Outbound Communication

Internal Network

Often requires:

• inbound firewall rules
• VPN tunnels
• exposed services

4G Model

Security impact:

Aligns with zero-trust principles and eliminates unsolicited inbound traffic.

Dependency on Enterprise Security Controls

Internal Network

Security depends on:

• firewall configuration
• patching regimes
• identity and access management
• monitoring systems

4G Model

Security boundary shifts to:

• device hardening
• application-layer encryption
• cloud endpoint security

Security impact: Reduces reliance on variable internal security maturity.

Carrier Network Security Properties

4G/LTE networks provide built-in security mechanisms:

• SIM-based authentication (mutual authentication with network)
• encrypted air interface (e.g. AES-based encryption)
• session isolation between devices
• carrier-managed core network controls
•

These controls create a hardened transport layer before application security is applied.

Data Protection Model

End-to-End Encryption

All data should be transmitted using:

• TLS 1.2 or higher
• certificate validation
• secure API endpoints

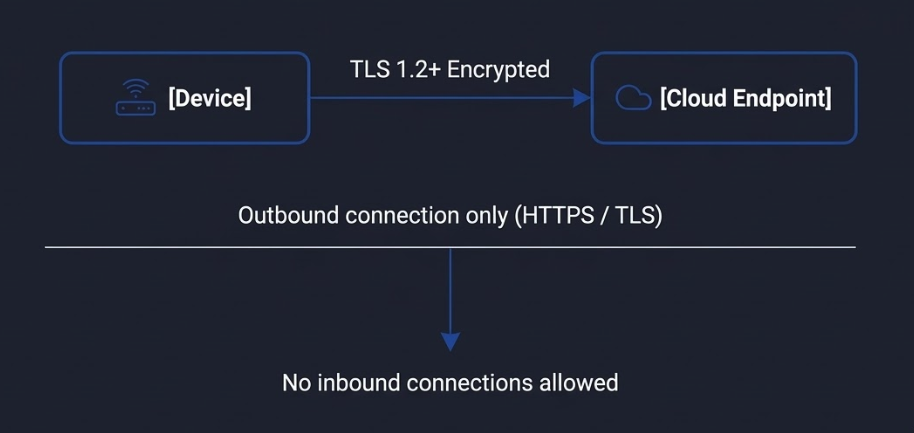

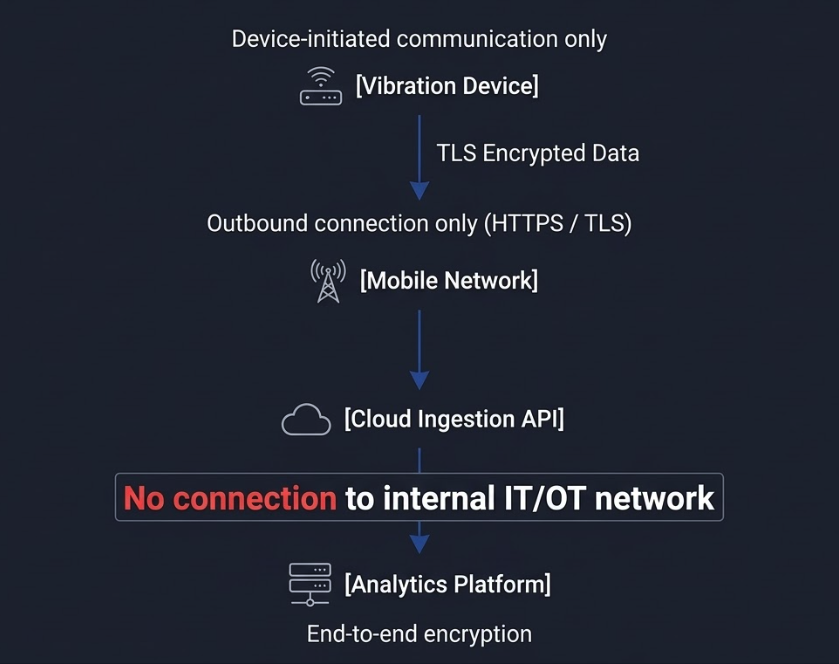

Diagram 3: Secure Data Path

[Vibration Device]
      |
      | TLS Encrypted Data
      v
[Mobile Network]
      |
      v
[Cloud Ingestion API]
      |
      v
[Analytics Platform]

Even if the transport network is considered semi-trusted, encryption ensures confidentiality and integrity.

Device Identity and Trust

Recommended controls:

• unique device credentials
• hardware-backed key storage where possible
• certificate-based authentication
• signed payloads

Operational and Deployment Advantages

Beyond security, 4G architecture simplifies deployment:

• no dependency on customer IT teams
• no firewall rule changes
• no VLAN configuration
• rapid installation in brownfield environments

This reduces both time-to-deploy and risk of misconfiguration.

Limitations and Considerations

4G is not universally optimal. Considerations include:

• signal strength in industrial environments
• data bandwidth constraints for high-frequency sampling
• SIM lifecycle and management
• cost modelling for data usage

Mitigations:

• buffered or edge-processed data transmission
• multi-network SIMs
• hybrid architectures where necessary

Conclusion

A 4G-based architecture for vibration monitoring represents a structurally more secure approach than internal network integration.

By design, it:

• removes devices from the enterprise attack surface
• eliminates lateral movement pathways
• enforces outbound-only communication
• reduces reliance on internal network controls
• simplifies deployment and governance

When combined with strong encryption and device identity controls, 4G connectivity provides a robust, scalable, and secure foundation for industrial condition monitoring.

Security FAQ

This section addresses common questions and objections raised by IT and security teams when evaluating 4G-based architectures for industrial data acquisition.

Is 4G inherently secure, or are we just shifting risk?

4G is not “secure by default” in isolation; however, it provides a more controlled and constrained network boundary compared to internal enterprise networks.

Key distinction:

• Internal networks are broad, shared, and variably secured environments
• 4G creates a narrow, purpose-built communication path

Security in the 4G model is achieved through:

• network isolation (no internal routing)
• outbound-only communication
• SIM-based authentication at the carrier level
• application-layer encryption (TLS)

This results in a smaller and more controllable attack surface.

Could a 4G-connected device be accessed from the internet?

In a properly configured deployment, no.

4G IoT devices typically operate behind carrier-grade NAT (CGNAT), which prevents unsolicited inbound connections.

Additional controls:

• no open inbound ports
• device initiates outbound connections only
• firewall rules at the application endpoint

This means the device is not directly addressable from the public internet.

What happens if the device is physically compromised?

Physical compromise is a risk in any architecture.

Recommended mitigations:

• secure boot and firmware validation
• encrypted storage of credentials
• hardware-backed key storage where available
• device identity tied to certificates
• ability to revoke device credentials remotely

Importantly, in a 4G architecture:

• compromise of the device does not grant access to the internal network
• lateral movement into IT/OT systems is not possible

This significantly limits blast radius.

Is cellular traffic encrypted?

Yes, at multiple layers.

At the carrier level:

• LTE uses encryption between device and base station (air interface encryption)

At the application level (critical requirement):

• TLS 1.2 or higher should be used for all data transmission
• certificate validation ensures endpoint authenticity

Best practice is to treat the carrier network as untrusted and rely on end-to-end encryption.

How does this align with zero trust principles?

A 4G architecture aligns strongly with zero trust design.

Zero trust principles applied:

• no implicit trust in network location
• all communication is initiated outbound
• strong identity at device and application level
• no inbound access to edge devices

In contrast, internal network models often rely on perimeter-based trust assumptions.

Are we losing visibility by not using the internal network?

This is a common concern from IT teams.

In practice, visibility is maintained through:

• cloud-side logging and monitoring
• API-level observability
• device telemetry reporting
• centralised logging pipelines

Additionally, modern platforms can integrate with SIEM systems, ensuring:

• security teams retain oversight
• alerts and anomalies are centrally monitored

What about data exfiltration risks?

The risk of unauthorised data exfiltration is typically lower in a 4G model.

Reasons:

• communication is restricted to known endpoints
• outbound traffic can be tightly controlled
• no general-purpose network access exists

Mitigations include:

• endpoint allowlisting
• payload validation
• rate limiting and anomaly detection

How are devices authenticated?

Authentication should be multi-layered:

Carrier layer:

• SIM-based authentication ensures only authorised devices access the network

Application layer:

• device certificates
• API keys or token-based authentication
• mutual TLS where possible

This ensures both network-level and application-level identity verification.

Can a compromised cloud endpoint affect the device?

In a properly designed system, risk is limited.

Because:

• devices do not accept inbound connections
• communication is initiated outbound
• commands (if any) are tightly controlled and authenticated

Mitigations:

• strict API authentication
• command validation and signing
• separation of ingestion and control channels

How does this compare to VPN-based architectures?

VPNs extend the internal network boundary outward.

This introduces:

• credential-based access risks
• broader network exposure
• potential for lateral movement once connected

In contrast, 4G:

• does not expose internal networks
• avoids persistent network tunnels
• restricts communication to specific endpoints

This represents a more constrained and lower-risk model.

Will this meet enterprise security policies?

Most modern security frameworks support or encourage architectures that:

• reduce attack surface
• enforce strong identity
• minimise lateral movement
• adopt zero trust principles

A well-implemented 4G architecture aligns with:

• NIST Cybersecurity Framework (network segmentation, least privilege)
• IEC 62443 (zone and conduit separation)
• ISO 27001 (secure communications and network controls)

Mapping to these standards can be provided to support internal approval processes.

What controls are still required?

4G reduces network risk, but does not remove the need for proper security engineering.

Essential controls include:

• end-to-end encryption (TLS)
• secure device provisioning
• credential management and rotation
• firmware update mechanisms
• monitoring and logging
• incident response capability

Security should be treated as layered, not dependent on a single control.

What is the residual risk?

Residual risks in a 4G architecture include:

• device-level vulnerabilities
• misconfigured cloud endpoints
• credential compromise
• physical tampering

However, compared to internal network models, these risks are:

• more contained
• easier to isolate
• less likely to propagate across systems

Why is this safer in practical terms?

In practical deployments, the primary causes of security incidents are:

• misconfigured internal networks
• over-permissive access controls
• lateral movement following initial compromise

A 4G architecture removes or significantly reduces these factors by:

• eliminating internal connectivity
• enforcing outbound-only communication
• simplifying network design

This results in a materially lower likelihood of systemic compromise.
